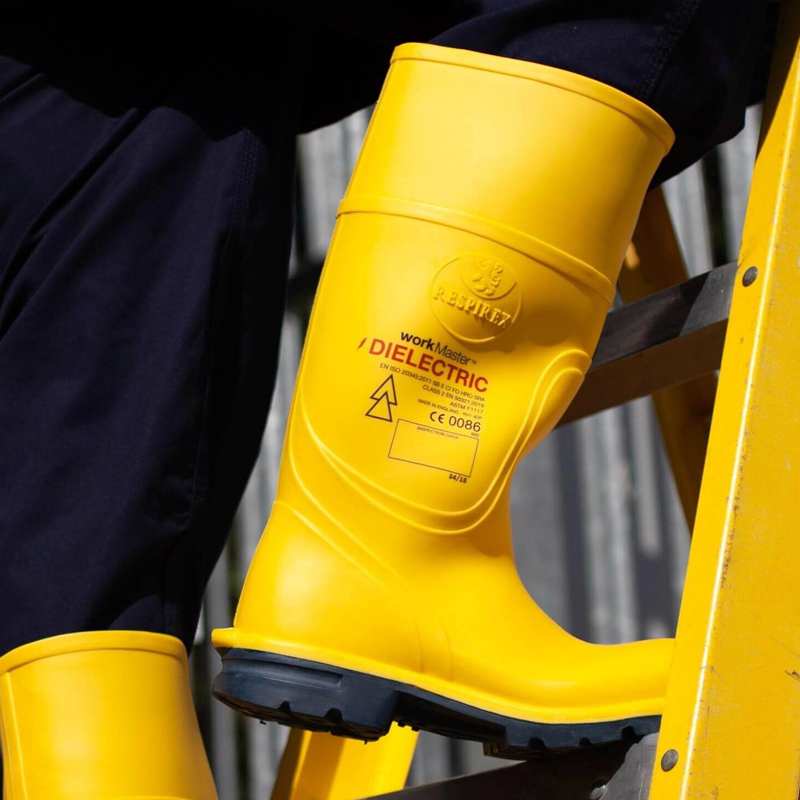

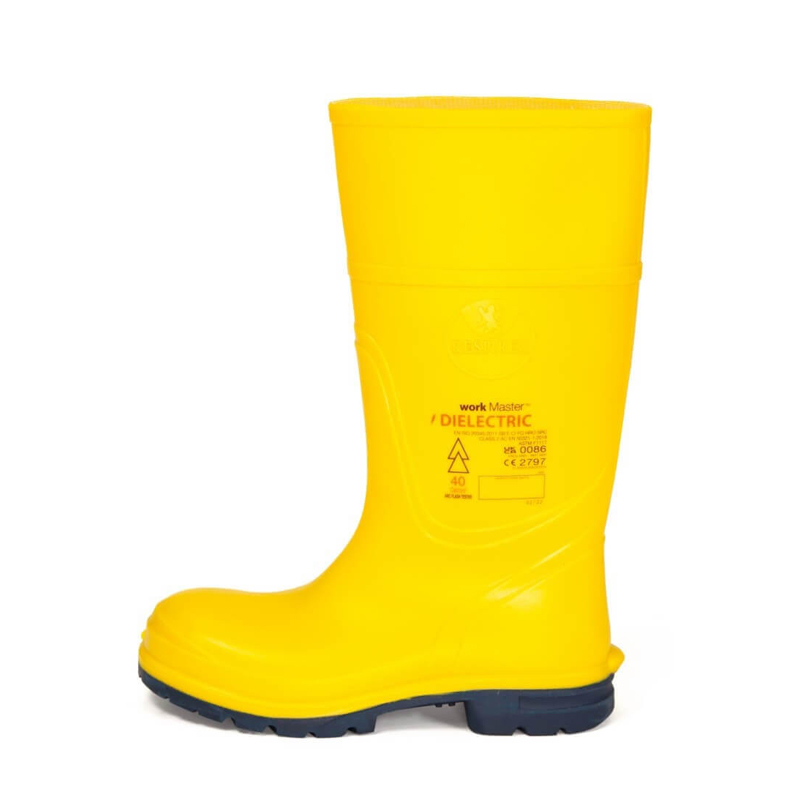

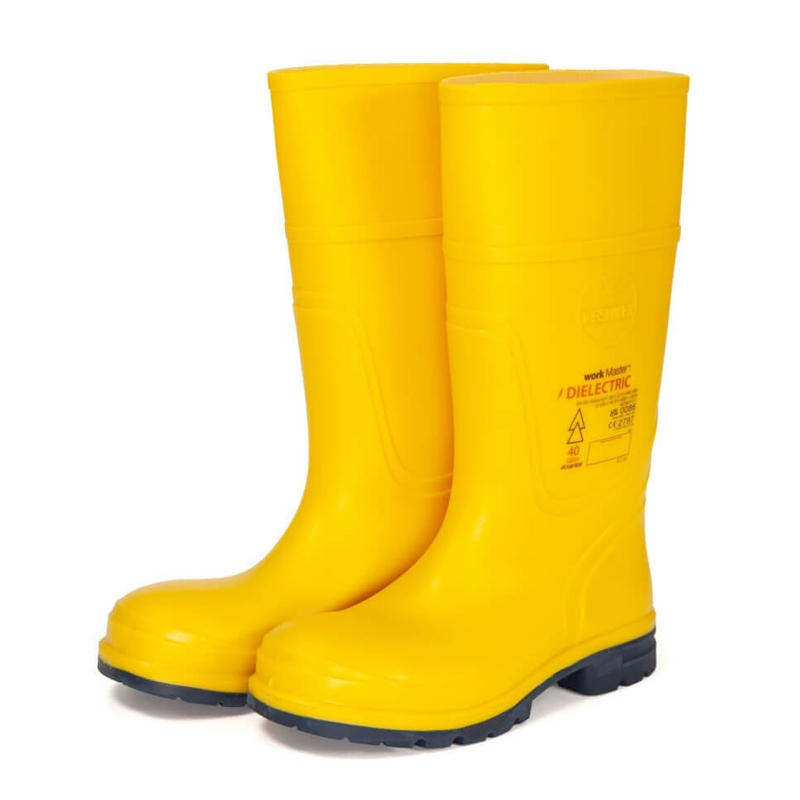

DIELECTRIC CLASS 2 BOOTS 绝缘防护靴
17kV高压带电作业专用，集成钢头&防滑硫化橡胶底
产品特性：
核心电绝缘性能
1. 高压防护认证
Class 2绝缘等级：
✓ 额定电压17kV（每双靴经20kV交流电压测试）
✓ 可选Class 1升级：支持40kV直流测试（极端高压场景）
跨步电压防护：35kV*（*需配合全套绝缘装备使用）
2. 电弧闪爆防护
通过ASTM F2621-2019认证：
✓ 耐受40Cal/cm²电弧能量（相当于1.5倍行业标准）
复合防护设计
1. 电气安全
无缝注射成型工艺：采用专利电介质复合材料，杜绝漏电风险
防虹吸内衬：非吸水尼龙材质（避免汗液导致绝缘失效）
2. 物理防护
200焦尔环氧钢头（可选软头版本）
军用级防切割橡胶大底：恶劣地形寿命提升3倍
耐高温：大底通过300℃/60秒测试（EN 20345:2022 HRO）
3. 环境适应性
SR级防滑：油/水环境抓地力提升30%
低温绝缘：符合EN ISO 20345:2022 CI标准
防油燃料：大底抗烃类腐蚀
人机工程优化
▶ 安全设计
跟部能量吸收系统（EN 20345:2022 E减震标准）
后跟助力凸起（紧急脱靴设计）
▶ 舒适系统
可拆卸缓冲鞋垫（支持机洗）
可调靴筒高度（适配不同作业服）

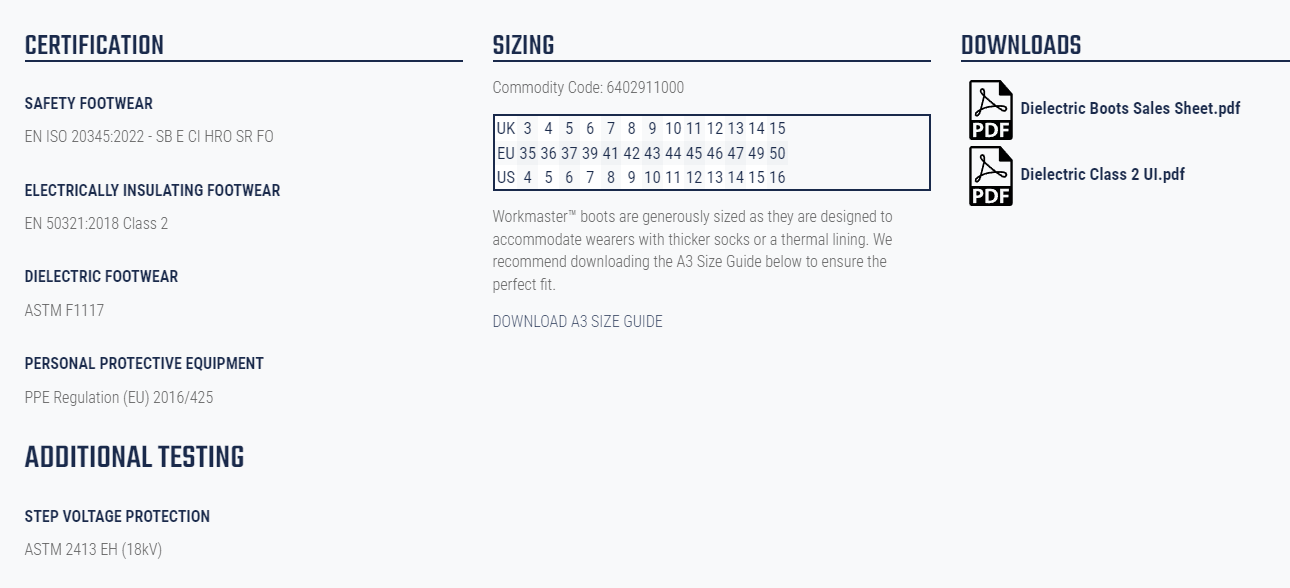

技术参数
项目 标准认证
电绝缘 IEC 60903 Class 2
电弧防护 ASTM F2621 40Cal/cm²
物理防护 EN ISO 20345:2022
环境合规 REACH/CE（靴筒标注生产年份）
应用场景
◉ 高压带电作业：
变电站17kV设备检修
轨道交通接触网维护
◉ 石化防爆区：
炼油厂高压配电室
海上平台电气抢修
（注：作业前需配合10kV验电器进行靴体绝缘检测，潮湿环境下建议搭配绝缘鞋套使用）
DIELECTRIC CLASS 2 BOOTS
for 17kV high voltage live operation, integrated steel head & non-slip vulcanized rubber sole,
product features:
core electrical insulation performance
1. High voltage protection certification
Class 2 insulation class:
✓ Rated voltage 17kV (each pair of boots is tested for 20kV AC voltage)
✓ Optional Class 1 upgrade: supports 40kV DC testing (extreme high voltage scenarios)
Step voltage protection: 35kV * (* needs to be used with a full set of insulation equipment)
2. Arc flash protection
Passed ASTM F2621-2019 certification:
✓ Withstands 40Cal/cm ² arc energy (equivalent to 1.5 times the industry standard)
composite protection design
1. Electrical safety
Seamless injection molding process: using patented dielectric composites to eliminate the risk of leakage
Anti-siphon lining: non-absorbent nylon material (to avoid insulation failure caused by sweat)
2. Physical protection
200 joule epoxy steel head (optional soft head version)
Military-grade cut-resistant rubber outsole: up to 3 times longer lifespan in rough terrain
High temperature resistance: outsole passes 300 ° C/60 seconds test (EN 20345:2022 HRO)
3. Environmental adaptability
SR grade anti-skid: 30% increased grip in oil/water environments
Low temperature insulation: according to EN ISO 20345:2022 CI standard
Oil-resistant fuel: outsole resistant to hydrocarbon corrosion
ergonomic optimization
▶ safety design
Heel energy absorption system (EN 20345:2022 E shock absorption standard)
Heel power bulge (emergency boot removal design)
▶ Comfort System
Removable cushioning insole (supports machine washing)
Adjustable boot height (suitable for different work clothes)
Technical parameters
Project, standard certification
Electrical insulation IEC 60903 Class 2
Arc Protection ASTM F2621 40Cal/cm ²
Physical protection EN ISO 20345:2022
Environmental compliance REACH/CE (boot barrel marked production year)
application scenario
High voltage live operation:
Substation 17kV equipment maintenance
Rail transit catenary maintenance
Petrochemical explosion-proof area:
Refinery high voltage distribution room
Offshore platform electrical emergency repair
(Note: Before operation, it is necessary to cooperate with a 10kV electroscope for shoe insulation testing. It is recommended to use it with insulating shoe covers in humid environments)
